Thursday 19 February 2015

Making my own sgian dubh (the knife traditionally worn with a kilt)

I'm in the process of buying a kilt and wanted to wear the traditional knife in my hose (sock). Looking at ones online, they were either well out of my price range or looked a bit tacky (covered in thistles and saltires etc.)

Being a woodcarver with a particular interest in knife carving there was no chance that I was going to wear something that impersonal, or carry about a blunt blade for that matter. So I decided to make my own.


 What is a sgian dubh?

The name comes from the Gaelic meaning 'dark knife' or 'black knife'. Although many sgian dubhs (it's pronounced something like 'skee-an doo') will have dark-coloured handles made from ebony or bog oak, the name is thought to reflect the way that the knife was hidden when being worn ('black' in the same sense as 'blackmail' or 'black ops').

There seem to be two main ideas about how the sgian dubh came to be part of Scottish national dress:

The first is that no one with any common sense in the old days in Scotland would completely remove all their weapons when visiting others - things were a bit too wild in the Highlands for that. To show respect and friendship to the hosts when in their house, visitors would put their knife into their hose, so that it was on show for all to see as an expression of good faith (although it could still be accessed in a hurry!). Another knife, called a sgian achlais, would also be worn under the armpit. Wearing the sgian dubh on show symbolises goodwill and friendship combined with an readiness to defend oneself if necessary.

The other influence on wearing sgian dubhs is thought by some to come from hunting. Knives are carried by hunters and ghillies in Scotland, so that deer can be skinned and gutted ('gralloched') in the field and brought back. Trying to get a dead red deer off a Scottish moorland in one piece would be a thankless task; far easier to cut it up first. Gralloching also involves removing the deer's intestines, which means the meat isn't tainted by gut contents.
The traditional design of a sgian dubh has small dimples along the back of the blade away from the cutting edge. I wonder if they echo the saw-type section on the blade of many hunting knives, which I suppose are used to cut through tough parts of a carcass?

Is it legal to carry a sgian dubh in public?

A sgian dubh is part of the Scottish national dress, so it is legal to carry one in public in England, Wales and Scotland when wearing that national costume. There are exceptions, such as particular kinds of knife (a flick knife just ain't gonna pass for a sgian dubh). Carrying any blade in security-sensitive places and onto aircraft is also not going to end well. The law may vary in other countries, best to check before heading out!


Making my sgian dubh


At first, I wanted to try and make the blade for my sgian dubh. However, blade making is a real skill involving knowledge of tempering steels and access to suitable equipment. I didn't have enough time to learn the craft of knifemaking to the level where I would be sure to be happy with the blade in use. I also fancied having a damascus steel blade (where layers of steel are fused together, to make patterns in the blade). Eventually, I decided to buy the blade from Rab and Tanya at Loch Ness Origins. It is carbon steel so will take a sharp edge, although it will need regular honing as it will dull relatively quickly. I think that it might be a bit brittle for very heavy work, but this knife isn't intended for that kind of use.

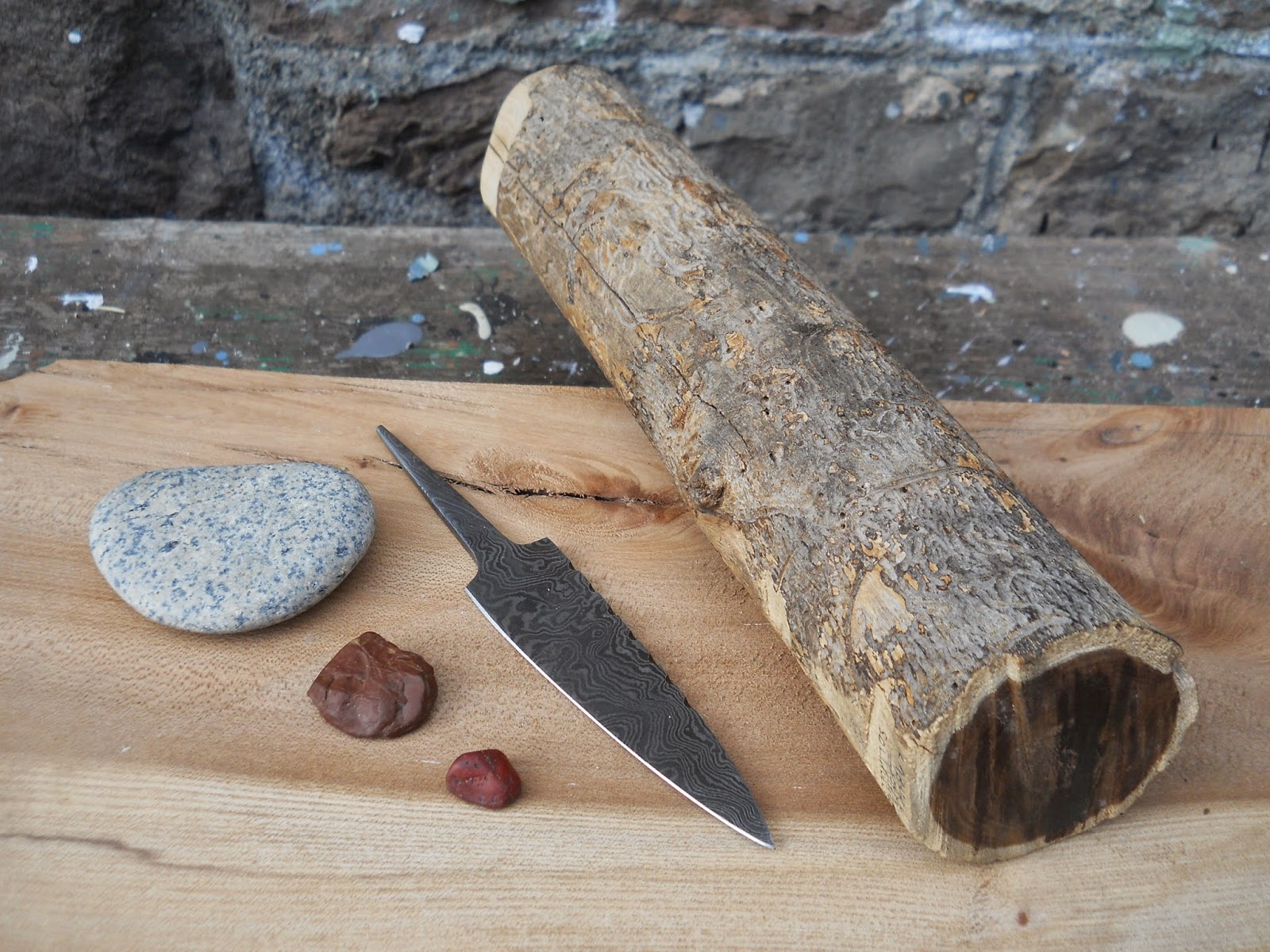

The sheath and handle were made from the piece of laburnum wood that you can see above. The tree grew in the garden of the house in which I was brought up, so it means a lot to me and has a strong family connection. My father would hang one end of a hammock from it for my mother to rest in when she was pregnant with me. The tree was felled long ago and the house has been sold since then.

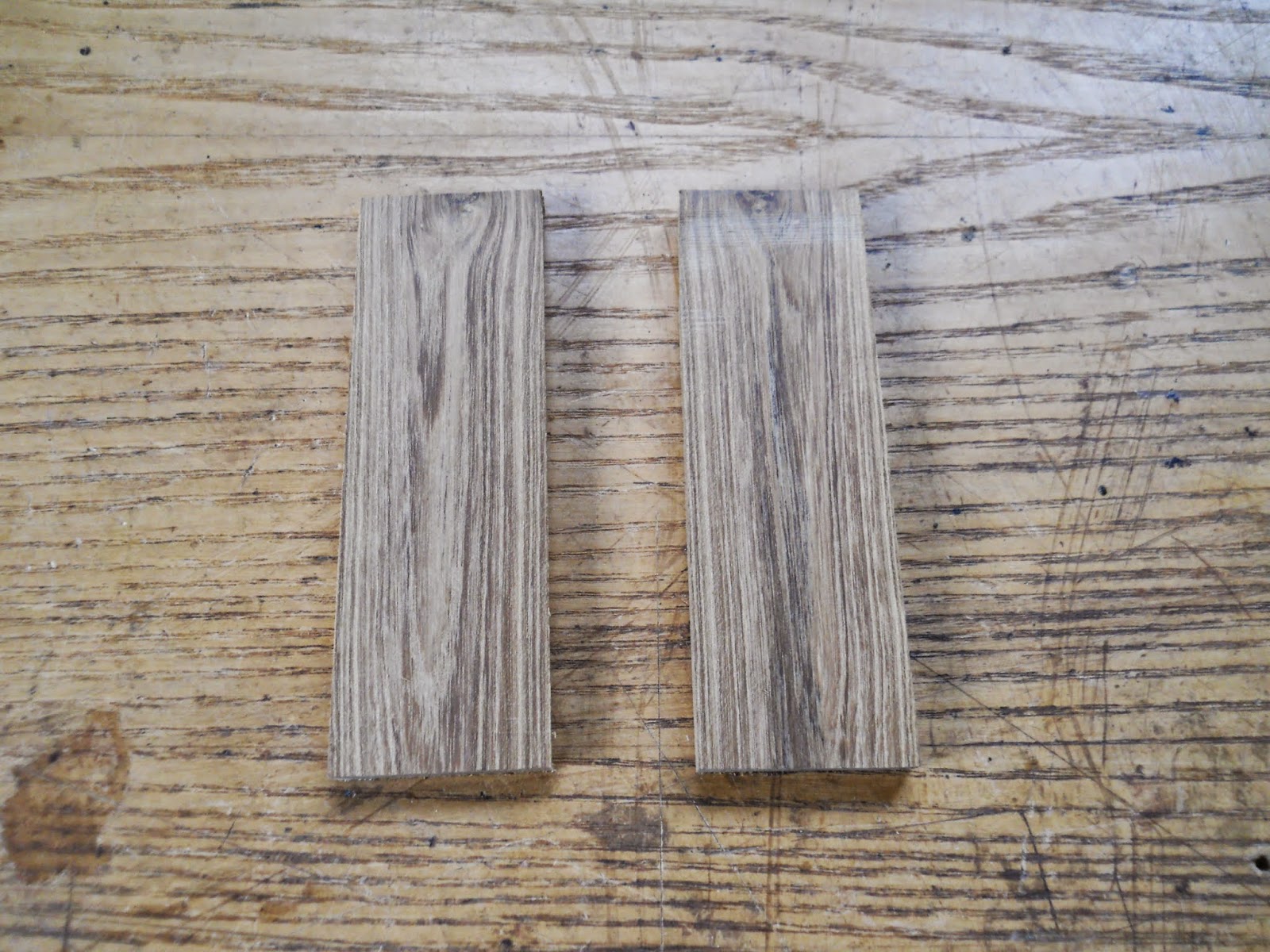

First, the wood for the sheath was cut and sanded to make usable blocks to work with:


The blade was laid onto the blocks and its outline drawn around, remembering to flip the blade over in between so that the outlines and the blocks were a mirror image. I marked the edges of the blade onto the wood at the top and also measured and marked the position of the point of the blade, to make sure that the two sides matched up neatly:



The wood was then carved out carefully, to give the space inside the sheath. The sides corresponding to the back of the blade are slightly more hollowed out, as this part of the blade is thicker. I thought about putting a shim of copper into the sheath to protect it from damage, but decided this might just dull the blade and it wasn't really necessary anyway.


The two halves were carefully glued together using Titebond III and clamped. It took a few goes to make sure that the halves hadn't shifted out of alignment whilst being clamped. Note the bits of paper, to stop any leaked glue from sticking the workpiece to the clamping blocks.


The next day, I shaped the sheath with my trusty old Opinel carving knife, rounding the edges to make it comfortable to wear. The grain of the wood is visually quite striking, so I didn't want too much elaborate carving clashing with it. A simple Celtic knotwork pattern suited the overall design well.


The handle was cut from the same piece of wood as the sheath, to give a continuous grain pattern running through both. I roughly shaped the end to go next to the sheath, so that I could shape the rest accurately and find the precise spot for the blade to be fitted in. With careful measuring, holes were then drilled to hold the tang of the blade. The hole also has a recess to hold the sloping shoulders of the blade, so that it fits in flush to the handle.


Shaping the handle was done with a knife. Using my Opinel was important to me in the process (as it is the blade that I learnt to carve with) and holding the handle as it was being shaped meant that I could constantly monitor how comfortable it felt in my hand.


Once the blade had been fitted and glued into the handle using slow-drying two-part epoxy (I find it less brittle than superglue or Titebond),  I noticed that it still moved a little in the sheath. Even though the fit was as snug as it could be, the blade could shift about and loosen itself a tiny bit. I decided to fit a tension spring made of silver (as it would be softer than the steel of the blade) into the sheath. At the same time, a piece of antique ebony veneer given to me by a friend many years ago gave a nice contrast to both the silver and the wood.


After gluing in the tension clip, I drilled a tiny hole and fitted and glued a pin made from silver wire, to give extra strength to the join. The clip is just a piece of flat silver, bent into a slight curve with a bit at the end bent to a right angle for fixing the clip onto a recess cut part-way into the veneer. The curved part is fitted over a shallow recess cut into the inside of the sheath. In hindsight, it would have been easier to fit it before gluing the halves of the sheath together, but it wasn't too tricky to do and the pinned silver does make a nice feature.


I then decided to use a stone to decorate the end of the handle, There were three choices, which you can see in the image above. The piece of jasper at the front was picked up by me from a stream in the Isle of Man. It was attractive but a bit too small. The larger reddish stone was collected from a stream in the Scottish borders. It was the right size and had the Scottish connection, however I wasn't sure about the colour or the strength of the stone itself.

I decided on using the larger, paler coloured pebble. I picked it up on the beach at Peel, on the Isle of Man, in 1988. It is a kind of stone called microgranite containing a mineral called riebeckite and originally came from a small Scottish island called Ailsa Craig, which is in the Irish Sea.

Image by Andy Hay, from www.rspb.org.uk
This kind of rock is rather special. It is used to make the 'stones' used in the sport of curling, with the only other source of material for curling stones being a single quarry in Wales. One company, Kays, has the exclusive rights to collect it from Ailsa Craig but they are forbidden from quarrying by blasting (as the island is a nature reserve), so must pick up stones that are already loose.

ailsa craig riebeckite

I cracked a piece from the stone, then spent a couple of hours trying to find it again after it shot off into a big pile of timber in my workshop! When it had been located again, it was ground down using diamond bits in a Dremel hand drill (not forgetting eye protection, dust extraction and a face mask) and then polished with jeweller's rouge. The groove around the stone will hopefully make it easier to set onto the handle, while the cross-hatching will give a key for the epoxy adhesive that I'm planning to use.

After shaping the stone, I discovered that the island of Ailsa Craig has other names, one of which is Creag or Carraig Alasdair. It means 'Alasdair's Rock' in Gaelic; very appropriate!



At this point, the parts of the knife looked like this:


The next stage was to make silver ferrules, one to go around the handle next to the blade and another holding the stone in place. Again, I didn't have the time or the equipment to do a more technical silversmithing job like this, so I contacted local silversmith Amy R Lee. She made two beautiful silver ferrules and also sent them to Edinburgh to be assayed and hallmarked at the assay office there; a nice extra touch.


When the ferrules came back, the knife was assembled and then sharpened. It has taken a very good edge and is razor-sharp now, perfect for whittling with! I also finished the wood with a furniture wax and buffed the blade.  I'm very happy with it and I hope that you've enjoyed seeing how it was made.

Front
Reverse side

making my own sgian dubh




Thursday 12 February 2015

A surprise visit from Peter Gabbitass' great grandson, to see his ancestor carved on the Downs bench

As I was working today in my studio with music playing on the stereo, I didn't see two people patiently waiting for me to look up. It was a visit from the great-grandson of Peter Gabbitass (the 'Clifton Poet') whose likeness is carved into the Downs bench that I am currently making.


The visit was a complete surprise to me but a very welcome one. John was very interested to see the carving of his great-grandfather and it was a pleasure to give them a sneak preview of the rest of the bench as well.


It is getting closer to completion! The bearers are now all carved. The last one to be made has been a crinoid (also called a sea lily), which would have lived in the seas of the Carboniferous Period around 350 million years ago. What became the limestone underneath the Downs was laid down during this time.


Here are all three bearers, depicting a crinoid, a brachiopod and a colonial coral:





Tuesday 3 February 2015

The Forest of Avon Products Cooperative is in the news!

I've been a member of the Forest of Avon Products cooperative for about seven years. The 'coop' itself has been going since 1999 and has given woodworkers concerned with ethical production methods a huge boost in the local area. People involved have skills ranging from fine cabinet making, through carving to businesses concerned with building large timber framed structures.

The Bristol Magazine have an article about us in their current edition. In case people can't see it before next month's edition comes out, I've reproduced the pages here from the online version, which is the property of MC Publishing.



Monday 2 February 2015

Visiting the pretty village of Castle Combe; unnatural carvings, Hollywood locations and one of the oldest working clocks in Britain

Castle Combe is in the county of Wiltshire, on the edge of the Cotswold hills. It may be familiar to some of you even if you have never visited there, as its picturesque streets have been used as a location for many films and TV programmes including Doctor Doolittle, Stardust and War Horse.


The village looked particularly beautiful in the clear winter sunshine as we walked around with almost no one else there apart from the residents.
















castle coombe












Of course, I couldn't resist dropping in to visit St Andrew's Church, just off the village square, to check out any carvings.

The church was originally built in the 13th century and later extended, with the nave built during the 14th century and the tower in the 16th. The church eventually fell into disrepair and a lot of work was subsequently done to it in the 19th century.


The gargoyles outside looked splendid in the clear winter light:


Inside, I noticed this (I assume) medieval carving...


If you look carefully at the bearded figure, it appears to be holding something - perhaps a rabbit?- as well as a crucifix. What looks like a rabbit's head is appearing between the man's legs. In the church guide, it says that the figure is giving birth to a demon.

I'm not sure about that explanation. A lot of medieval carvings do show unnatural things, often representing 'the world turned upside down' (you can see some of these in my post about Bristol cathedral). However, I think that this one is more likely to be a humorous warning against lust, with the associations that rabbits have! The guide also points out another light-hearted carving, of an unnatural beast situated right next to the church organ - perhaps the organ has itself been the source of many unnatural sounds over the years!


There are many other interesting carvings and paintings in the church. The chancel arch is beautifully carved:


In the wall off to one side, the tomb of Sir Walter de Dunstanville dates to 1270. According to a nearby sign, the fact that his feet rest on a lion and he is in the act of drawing his sword mean that he was killed in battle. His legs crossed at the knees mean that he went on two crusades. The figures below represent his children, including a priest, a man of letters, a farmer's wife and one woman who died in childbirth. The chainmail he wears is so well carved that the original mail can be identified as having come from smiths in Bristol.


The older carvings are not the only interesting ones. This scene of the Last Supper of Jesus and his disciples, based on the famous mural painted by Leonardo Da Vinci, hangs on one wall.


If you look carefully it becomes clear that it was carved in the Far East, not only because of the wood used and some design touches. All of the figures also have facial features from that region.


There are a few nice nineteenth century carvings dotted about in the choir stalls too.


It's not only the decorations that are of interest in this church. It houses what is probably one of the oldest working clocks in Europe.


There's no definite date of manufacture for the clock, but parts of it's design are similar to others known to have been made in the 15th century. It used to sit in the belltower but was moved down into the church in the 1980s. The clock doesn't have a face to tell the time, instead it chimes to let people know the hour.


If you would like to see it chime be warned that, despite many parts having been changed and replaced over the years, it is very old and doesn't keep modern time very accurately; we gave up waiting after about half an hour!
